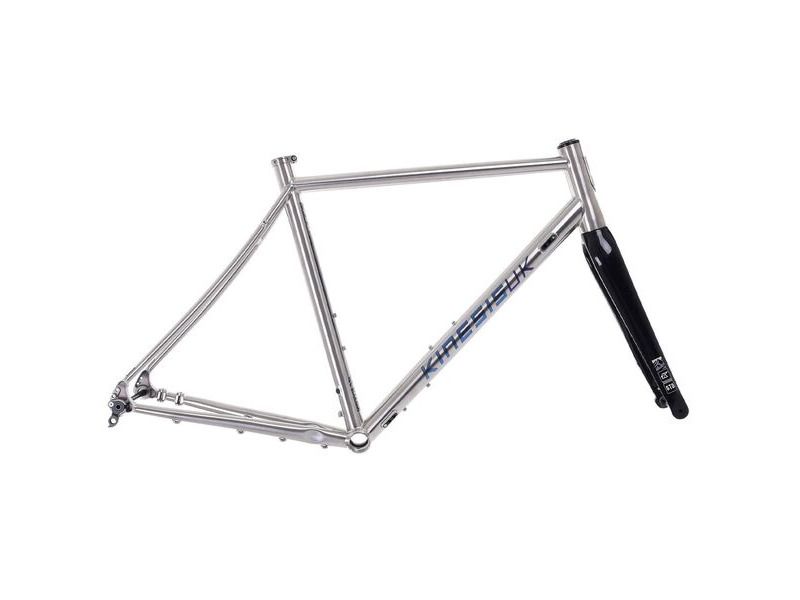

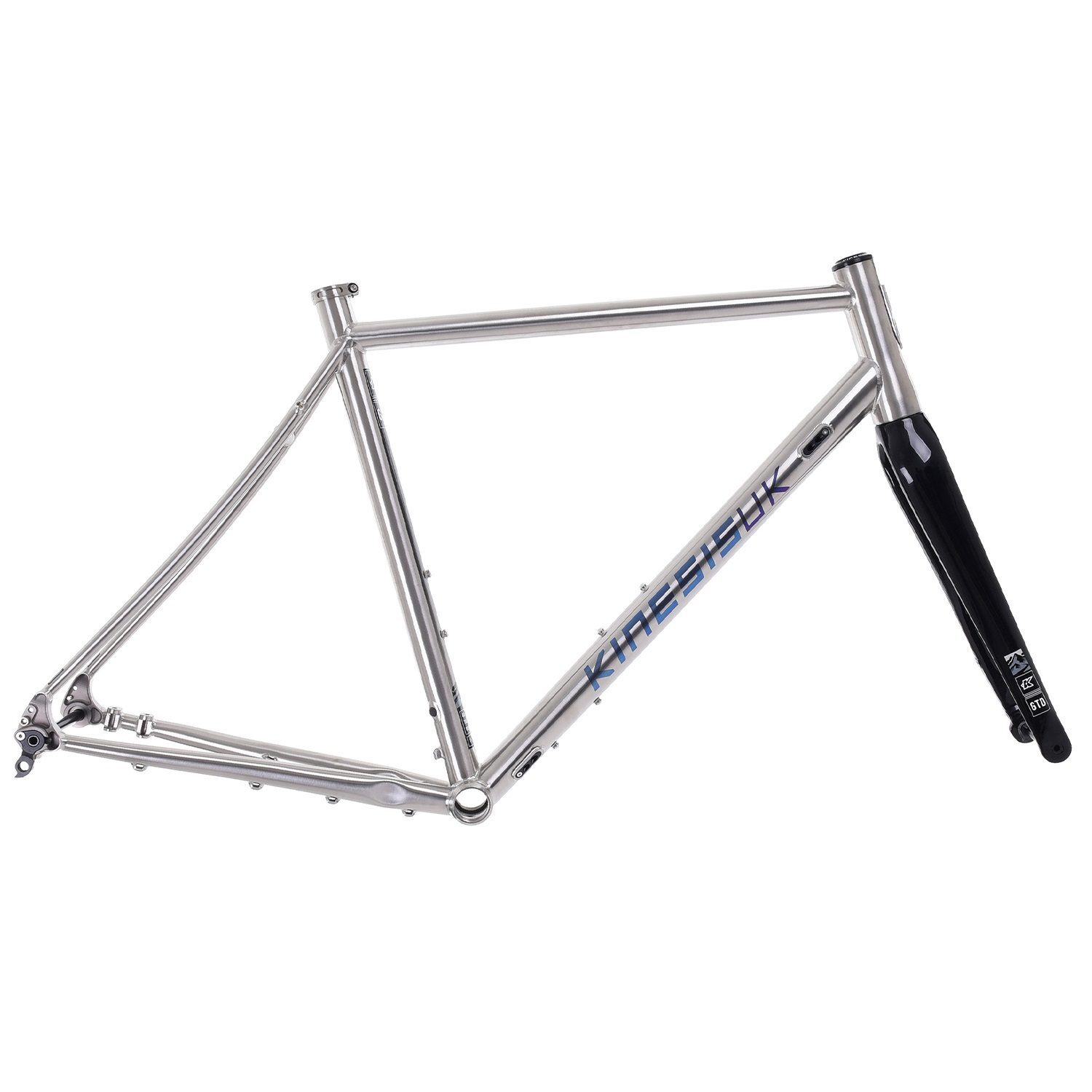

KINESIS UK Frameset - GTD v2

£2400.00

Options	48cm Silver (Item# 5055308123727 254977 K-RL-GTD-V2-48) In Stock (warehouse) 50cm Silver (Item# 5055308123734 254984 K-RL-GTD-V2-50) In Stock (warehouse) 52cm Silver (Item# 5055308123741 221535 K-RL-GTD-V2-52) In Stock (warehouse) 54cm Silver (Item# 5055308123758 222112 K-RL-GTD-V2-54) In Stock (warehouse) 56cm Silver (Item# 5055308123765 254991 K-RL-GTD-V2-56) Out of Stock 58cm Silver (Item# 5055308123772 230162 K-RL-GTD-V2-58) In Stock (warehouse) 60cm Silver (Item# 5055308123789 255004 K-RL-GTD-V2-60) In Stock (warehouse)
Description	• Full Titanium tubing. • Rider Fit Geometry. • New Carbon Fork. • Revised Bottom Bracket Shell. • Improved Cable Routing. • Adaptable Cable Ports. NEW Rider Fit GeometryRedistributed sizing based around Stack and Reach measurements, with semi sloping frame on the smallest frames. This not only reduces the stand over height but also brings comfort in line with our larger models.NEW Carbon ForkIncreased tyre, mudguard clearance and mounting point for a dynamo lamp.NEW Revised BB ShellIncreased internal space to allow the use of 30mm axle cranks with Di2 internal routing.NEW Improved Cable RoutingProvisions for full gear outer cable from the shifter to the rear derailleur. This protects against water and dirt ingress, preserving shifting performance for longer.Curved seat staysMaximises rear end compliance for vibration damping, whilst the straight chain stays stiffen the frame laterally for maximum power transfer.12mm Thru Axle Front and RearIndustry standard for maximum wheel security and bike stiffness. With a removable GW Switch Lever, giving a clean, elegant look.Adaptable Cable PortsVersatility with set up choice for any major groupset.Abundance of mountsBottle mounts, rack mounts, mudguard mounts, for versatile all seasons riding.Thru Axle Located Derailleur HangerThru Axle locates through the hanger for maximum hanger rigidity, with no negative effect on deformation during impact.Custom CNC dropoutsWith discreet Di2 routing. Our flagship titanium road frameset is back, with a host of refinements for an even more unforgettable ride. No matter whether you are doing endurance races, century rides, or commuting in style, the GTD delivers pure riding joy on every single ride. The GTD comes equipped for all conditions riding, because we believe the sublime ride of titanium shouldn't be reserved for summer Sundays. • Custom drawn 3Al 2.5v titanium tubing. • Kinesis carbon monocoque disc tapered fork. • Flat mount specific calliper mounts. • GW Tapered headset with ACB Bearings. • 142x12mm Thru Axle rear spacing. • 100x12mm Thru Axle front fork. • GW 'Switch Lever' axles front and rear. • Clearance for up to 34mm tyres. • Clearance for up to 30mm tyres with guards. • Compatible with Mechanical and Di2 systems (1x and 2x). • Two bottle cage mounts. • Mudguard and rack mounts. • 34.9mm Front Mech clamp size. • 68mm threaded Bottom Bracket. • 31.6mm Seatpost required. • Brushed natural Titanium with laser etched Downtube. • Available in 48cm, 50cm, 52cm, 54cm, 56cm, 58cm and 60cm sizes. • Frame supplied with fork, headset, titanium seat clamp, front & rear Thru Axle, frame ports and cable guides. • 5 years warranty (original owner, see warranty information). Frame Weight: 48cm - 1.63kg. 50cm - 1.66kg. 52cm - 1.70kg. 54cm - 1.74kg. 56cm - 1.79kg. 58cm - 1.84kg. 60cm - 1.89kg.

Options

48cm Silver (Item# 5055308123727 254977 K-RL-GTD-V2-48) In Stock (warehouse)
50cm Silver (Item# 5055308123734 254984 K-RL-GTD-V2-50) In Stock (warehouse)
52cm Silver (Item# 5055308123741 221535 K-RL-GTD-V2-52) In Stock (warehouse)
54cm Silver (Item# 5055308123758 222112 K-RL-GTD-V2-54) In Stock (warehouse)
56cm Silver (Item# 5055308123765 254991 K-RL-GTD-V2-56) Out of Stock
58cm Silver (Item# 5055308123772 230162 K-RL-GTD-V2-58) In Stock (warehouse)
60cm Silver (Item# 5055308123789 255004 K-RL-GTD-V2-60) In Stock (warehouse)

Description

• Full Titanium tubing.

• Rider Fit Geometry.

• New Carbon Fork.

• Revised Bottom Bracket Shell.

• Improved Cable Routing.

• Adaptable Cable Ports.

NEW Rider Fit GeometryRedistributed sizing based around Stack and Reach measurements, with semi sloping frame on the smallest frames. This not only reduces the stand over height but also brings comfort in line with our larger models.NEW Carbon ForkIncreased tyre, mudguard clearance and mounting point for a dynamo lamp.NEW Revised BB ShellIncreased internal space to allow the use of 30mm axle cranks with Di2 internal routing.NEW Improved Cable RoutingProvisions for full gear outer cable from the shifter to the rear derailleur. This protects against water and dirt ingress, preserving shifting performance for longer.Curved seat staysMaximises rear end compliance for vibration damping, whilst the straight chain stays stiffen the frame laterally for maximum power transfer.12mm Thru Axle Front and RearIndustry standard for maximum wheel security and bike stiffness. With a removable GW Switch Lever, giving a clean, elegant look.Adaptable Cable PortsVersatility with set up choice for any major groupset.Abundance of mountsBottle mounts, rack mounts, mudguard mounts, for versatile all seasons riding.Thru Axle Located Derailleur HangerThru Axle locates through the hanger for maximum hanger rigidity, with no negative effect on deformation during impact.Custom CNC dropoutsWith discreet Di2 routing.

Our flagship titanium road frameset is back, with a host of refinements for an even more unforgettable ride. No matter whether you are doing endurance races, century rides, or commuting in style, the GTD delivers pure riding joy on every single ride. The GTD comes equipped for all conditions riding, because we believe the sublime ride of titanium shouldn't be reserved for summer Sundays.

• Custom drawn 3Al 2.5v titanium tubing.
• Kinesis carbon monocoque disc tapered fork.
• Flat mount specific calliper mounts.
• GW Tapered headset with ACB Bearings.
• 142x12mm Thru Axle rear spacing.
• 100x12mm Thru Axle front fork.
• GW 'Switch Lever' axles front and rear.
• Clearance for up to 34mm tyres.
• Clearance for up to 30mm tyres with guards.
• Compatible with Mechanical and Di2 systems (1x and 2x).
• Two bottle cage mounts.
• Mudguard and rack mounts.
• 34.9mm Front Mech clamp size.
• 68mm threaded Bottom Bracket.
• 31.6mm Seatpost required.
• Brushed natural Titanium with laser etched Downtube.
• Available in 48cm, 50cm, 52cm, 54cm, 56cm, 58cm and 60cm sizes.
• Frame supplied with fork, headset, titanium seat clamp, front & rear Thru Axle, frame ports and cable guides.
• 5 years warranty (original owner, see warranty information).

Frame Weight:
48cm - 1.63kg.
50cm - 1.66kg.
52cm - 1.70kg.
54cm - 1.74kg.
56cm - 1.79kg.
58cm - 1.84kg.
60cm - 1.89kg.

As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
